Wild West Hackin Fest SAO
By
#
WWHF v1.0
danger Disclaimer v1.0
Well, mistakes happen! This version is not working straight away unfortunately. I'll explain why here.

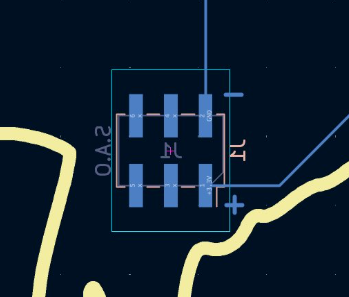

As you can see in the top picture, I forgot to invert the connector! This means the VCC 3.3V and GND are not in the right place.

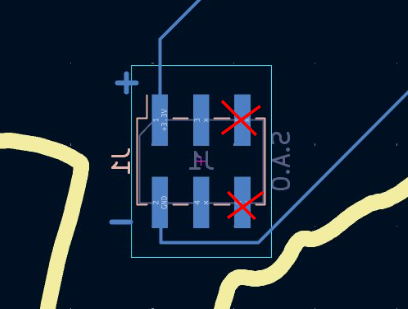

Here is the corrected version. I'll print a new batch later. Now I'll remember to always print prototypes first!!

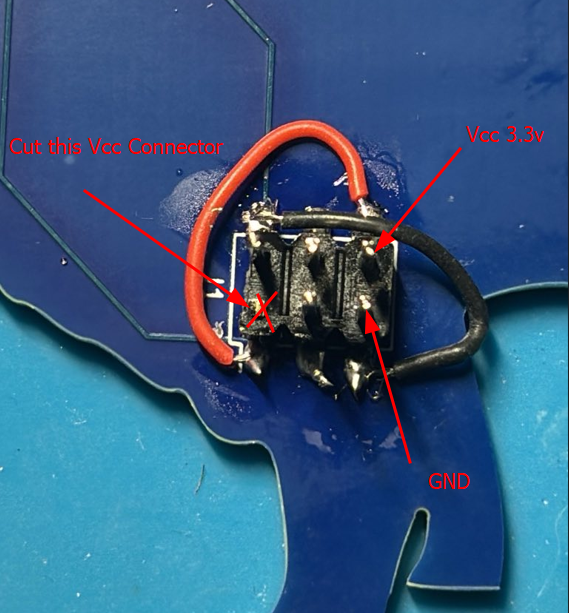

Here is a quick fix if you have this version: just wire the GND and VCC to the correct pins.
- Black Wire --> GND
- Red Wire --> VCC 3.3V
I cut the bottom-left VCC pin to avoid short circuits on the host board, for safety reasons :D
#
Footprints
- LED_SMD:LED_1206_3216Metric x1
- What I used: SMD 1206 LED
- Connector_PinHeader_2.54mm:PinHeader_2x03_P254mm_Vertical_SMD x1
- Whart I used: 2.54MM PITCH Strip Connector Gold plated SMD SMT
- Resistor_SMD:R_1206_3216Metric x1
- What I used: 1206 SMD Resistor 100 ohm
