# Dalek SAO

# Dalek SAO v2.0

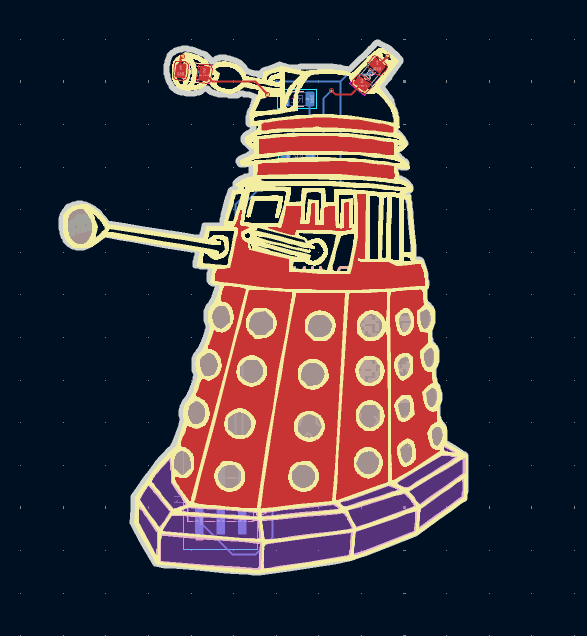

This new version includes a fix on the body and add explosed copper parts.

• New color : Purple.

Basicaly I figured out how to expose copper using Kicad :) If you are interested, you need to add a first layer of Front Copper, then you need to add a layer of Front Solder Mask on top.

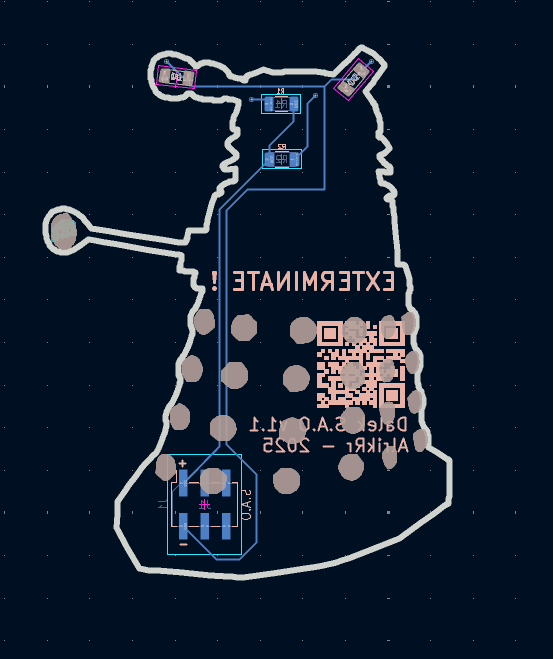

# Dalek v1.1

# Footprints

• LED_SMD:LED_1206_3216Metric x2
  • What I used: SMD 1206 LED
• Connector_PinHeader_2.54mm:PinHeader_2x03_P254mm_Vertical_SMD x1
  • Whart I used: 2.54MM PITCH Strip Connector Gold plated SMD SMT
• Resistor_SMD:R_1206_3216Metric x2
  • What I used: 1206 SMD Resistor 100 ohm

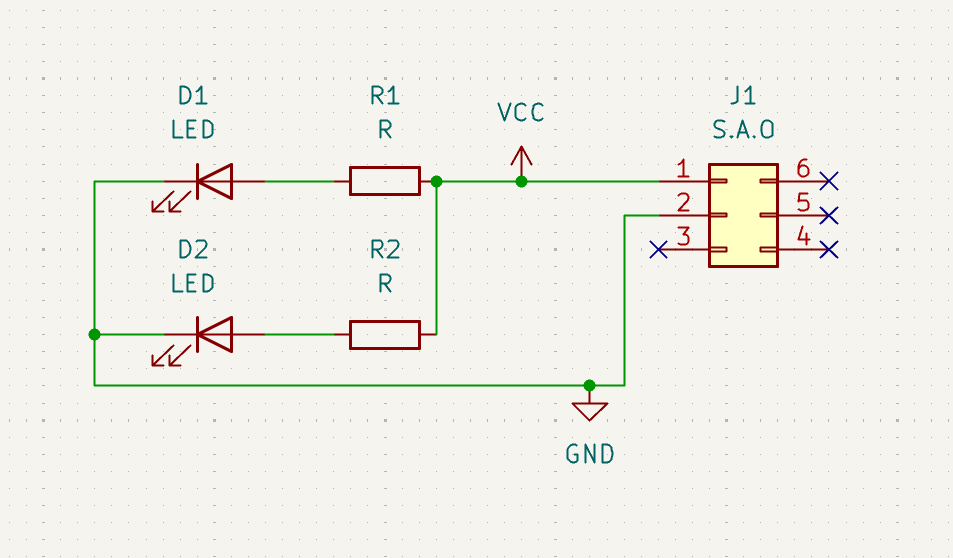

# Schematics

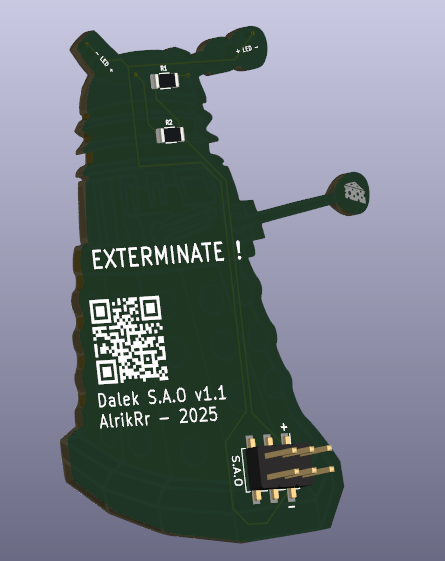

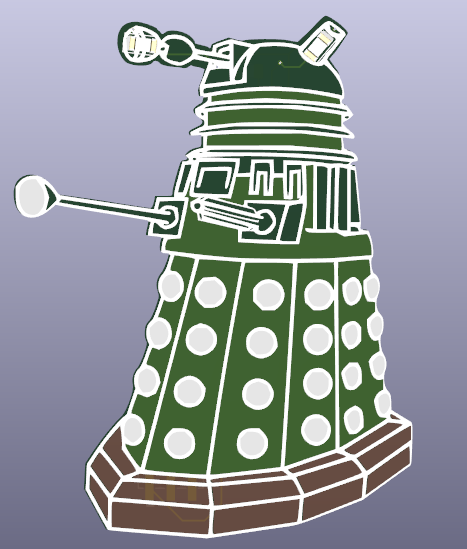

# View
